V90-BLU5 HD | Special Offer
The V90-BLU5 HD is a High Definition Bluetooth Receiver and flexible Input Extender.
V90-BLU5 HD - Overview
V90-BLU5 HD in Brief
- High-Tech Bluetooth Streamer with special DAC and SRC Design for complete High-End Bluetooth Playback
- Bluetooth 5.0: more available bandwidth and transmission range
- AptX HD for wireless High-Resolution Bluetooth transmission
- Separate High-End DAC and SRC Circuit Design with Re-Clocking and Up-Sampling
- Input Extender with Flexible Input and Output Options
- Easy to integrate in any existing HiFi Setup
SPECIAL OFFER: 279€ 349€ (incl. VAT)
Find your local dealer: Click here!
V90-BLU5 HD - Specifications
Bluetooth Performance
- CSR8670 Bluetooth Chip
- Bluetooth Radio Specification v5.0
- SBC, Qualcomm® aptX™, aptX™ HD
- aptX™ HD max. 24bit/96kHz; 576kbit/s
- Carrier frequency 2.402 to 2.480 GHz
- Transmission power +10dBm (max)
- Class 5 up to 240M range
- Class 2 up to 30M range
- Burr-Brown PCM 1781D 24/192 DAC
- Burr-Brown SRC4392 Re-Clocking and Up-Sampling Chip
- THD(+ noise): <0.01% (‚A‘ wtd)
- Frequency Response: +0, –0.1dB
- Seperation: -78dB
- Signal / Noise ratio: -80dB (‚A‘ wtd)

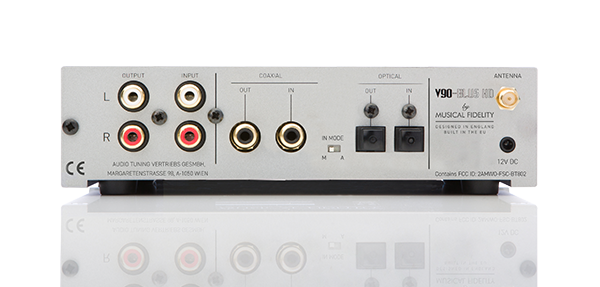

- 1x line level RCA
- 1x RCA coaxial up to SPDIF 24bit/192kHz
- 1x TOSLINK optical up to 24bit/96kHz
- 1x line level RCA
- 1x RCA coaxial SPDIF up to 24bit/192kHz
- 1x TOSLINK optical up to 24bit/96kHz
- Dimensions - WxHxD (mm): 170 x 47 x 117
- Weight (unpacked / packed): 590g / 1.05 kg
- 1x 12v 500mA DC power supply
- 1x Bluetooth Antenna
- User Manual
