LX2-HPA | Headphone Amplifier

The LX2-HPA is a headphone amplifier of superb sonic quality.

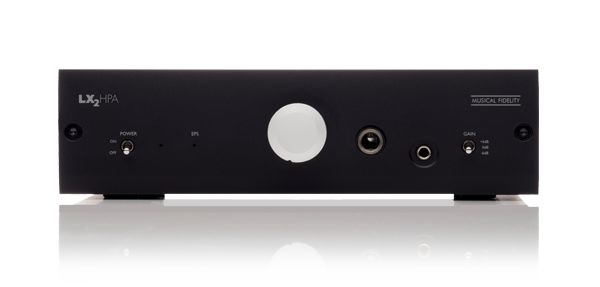

LX2-HPA Front Panel
LX2-HPA Rear Panel
LX2-HPA Extra Image

LX2-HPA - Overview

Musical Fidelity has extensive experience making super headphone amps, the LX2-HPA builds on our decades of experience to deliver a great performer with beautiful, restrained and tasteful aesthetics.

Technical Performance

A headphone amplifier is like a small power amp, relative to the load (the headphones) the technical requirements are similar: Excellent load tolerance, high stability margins, low distortion, wide bandwidth, low noise, excellent channel separation.

  • The LX2-HPA will easily drive any commercially produced headphone. It's high current delivery and excellent stability margins result in completely uncoloured neutral performance.
  • Distortion at less than 0.0035%, wide band is vanishingly low and certainly inaudible.
  • Bandwidth extends to about 80kHz and even at 40kHz the distortion remains well below 0.05%. A remarkable achievement.
  • The outstanding noise ratio of better than 112dB means that the music comes from a true 'black velvet' background field.
  • Stereo separation is excellent and assures a rock solid imaging experience. Talk about 'adventures in inner space!

Overall

The LX2-HPA gives a sensual monitor level listening experience. Completely uncoloured sound delivered with virtually limitless dynamic range from a black velvet background, and perfectly placed spatial imagery.

LX2-HPA - Specifications

Specifications

  • Input Impedance: 47KΩ
  • Input Sensitivity: 3.0mV
  • Total Harmonic Distortion: 0.01%
  • Signal / Noise Ratio: >80dB

General

  • Power Requirement: 12 - 24V 100mA Regulated

Connections

  • RCA Input: 1pr RCA sockets
  • RCA Output: 1pr RCA sockets
  • Headphone Output (6.3mm): 1 stereo jack socket (6.3mm)
  • Headphone Output (3.5mm): 1 stereo jack socket (3.5mm)
  • Power Input: DC Jack (1.3mm inner pin, outer diam. 3.5mm

Dimensions

  • Length (including terminals) 197mm
  • Width 172mm
  • Height (including feet) 46.5 mm

Weight

  • Unit alone: 1.05Kg
  • Unit with packing: 1.50Kg

Included accessories

  • Power Supply: 12V 500mA
