Roundtable S | Special Offer
The Roundtable S is a new venture into the world of turntables.
Roundtable S - Overview

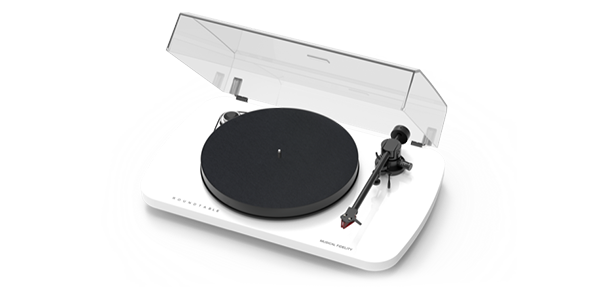

Roundtable S
Musical Fidelity’s latest Roundtable S is a new venture into the world of turntables. This is a high quality competitively priced complete solution. It has a high quality low resonance 9” pickup arm (magnetic anti-skating) with steel tipped vertical bearings housed in zirconium with rubber damping, not dissimilar in principle to the Incabloc shock protection system on watches. The horizontal bearings are ABEC7 ball bearings. It is fitted with an Ortofon 2M Red cartridge. A dustcover is included.
SPECIAL OFFER: 699€ 899€ (incl. VAT)
Find your local dealer: Click here!
Roundtable S - Specifications
Performance
- Nominal speed 33/45 rpm, outside belt drive system, manual speed change
- Speed Variance 33rpm: ± 0.30 %, 45rpm: ± 0.20 %
- Wow and flutter 33rpm: ± 0.10%, 45rpm: ± 0.09%
- Signal to noise ratio Mechanical noise: - 39 dB
- Electrical noise: -65dB
- Downforce range 0 - 25 mN
- Tonearm 9'' straight shape massive aluminium construction
- Supplied counterweights no. 82, weight 114g (± 1g), for cartridges from 5 to 13g
- Effective tonearm mass 14g
- Effective tonearm length 230mm (tonearm mounting distance 212mm)
- Overhang 18mm
Power
- Power requirement 15V 0.8A (Adaptor supplied)
- Consumption >0.25 Watts standby 5 Watts maximum
- Adaptor mains voltage 110-240 V 50-60Hz
Weight
- Unit only, unboxed 6 kg (131/5 lbs)
- In shipping carton 8 kg (173/5 lbs)
Supplied Cartridge Ortofon 2M Red
- Cartridge type Moving Magnet
- Frequency Response 20 - 20.000 Hz + 3 / - 1 dB
- Channel Separation 22 dB at 1 kHz
- Channel Balance 1.5 dB
- Tracking Force 1.6 - 2.0g (1.8g recommended)
- Vertical Tracking Angle 20°
- Recommended Load Impedance 47,000 ohms
- Recommended Load Capacitance 150 - 300pF
- Output Voltage 5.5 mV (mV at 1 kHz, 5 cm/sec)
- Stylus Shape Elliptical
- Stylus Construction tipped Elliptical diamond
- Mount Half-inch
- Weight 7.2g
- Replacement Stylus 2M Red (exchangeable with 2M Blue and 2M Silver)
Dimensions
- Width 542 mm (23½”)
- Height (including feet) 100 mm (4”)
- Depth (front to back) Inc. terminals 342 mm (13½”)
